Straight Modules
Art Bailey's Straight Module

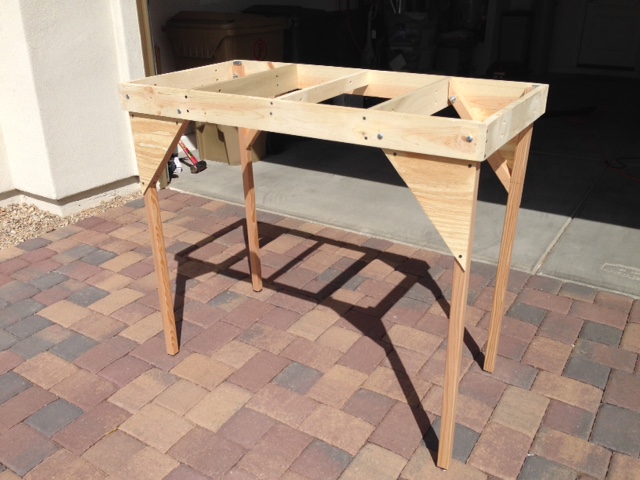

Art has completed the benchwork for the Chapter's first straight module
(March 2015). Here are some photos. The use of gussets makes for a very
sturdy module. The legs are easily detached for convenient
transportation.

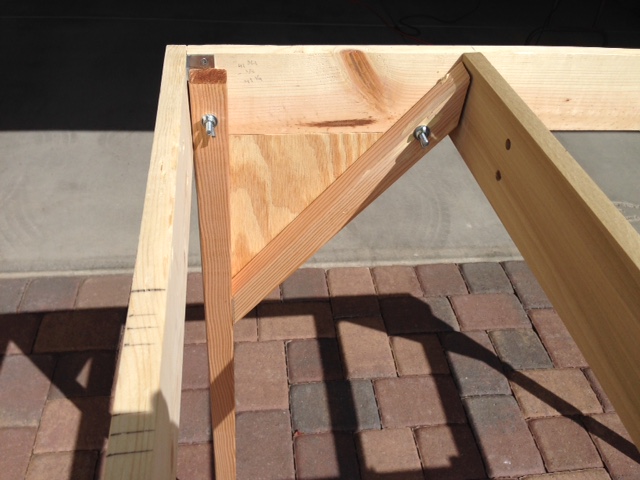

Leg with gusset is attached at two points with bolts and wing nuts for
easy removal.

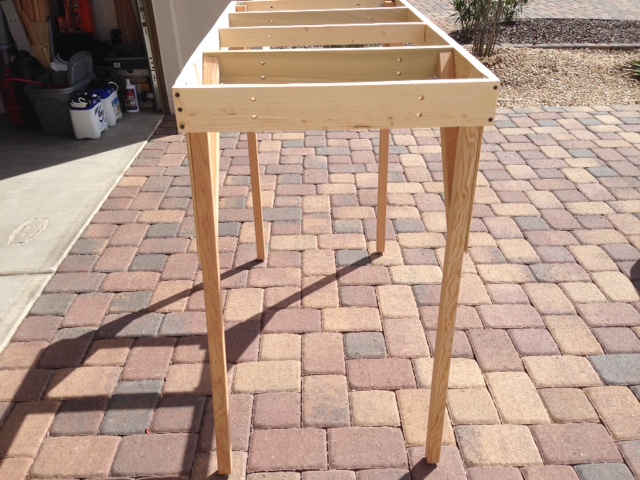

Module end view.
Gusset is attached to the leg using three screws on the other side.
Here the bolts attaching the leg assembly to the module table are seen.
